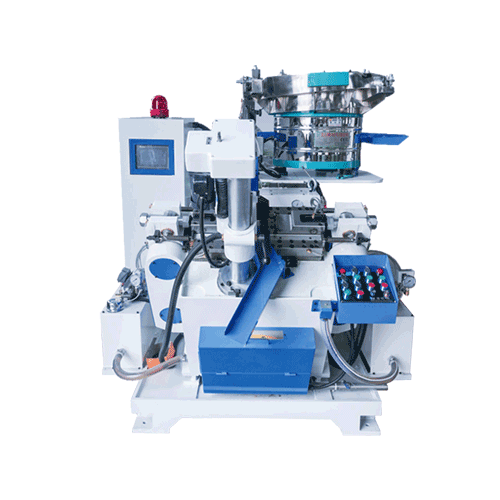

YW-200
YW-125
YW-300
3D Video
Operation Video
PRODUCTS PARAMETERS
| Models | YW-200 |
| Machine Dimension | L1900x W1500xH1900 |
| Net Weight | 2800 KGS |
| Horsepower | 11.0 KW Inverter (15HP) 7.5 KW Motor (10.0HP-6P) |
| Available Screw Size | Dia: 2.8-8.0mm (6#-18#) Length: 10-200mm |
| Speed | Single Click: 100-500 pcs/min / Double Click: 40-150 pcs/min |
| Control mode | Programmable PLC Automatic Control |
| Interface System | HMI Touch Screen |
| Transmission Way | MAC Solenoid Valve + Air Compressor Clutch (Drive + Brake) |
| Feeding/Positioning | INDEX |
